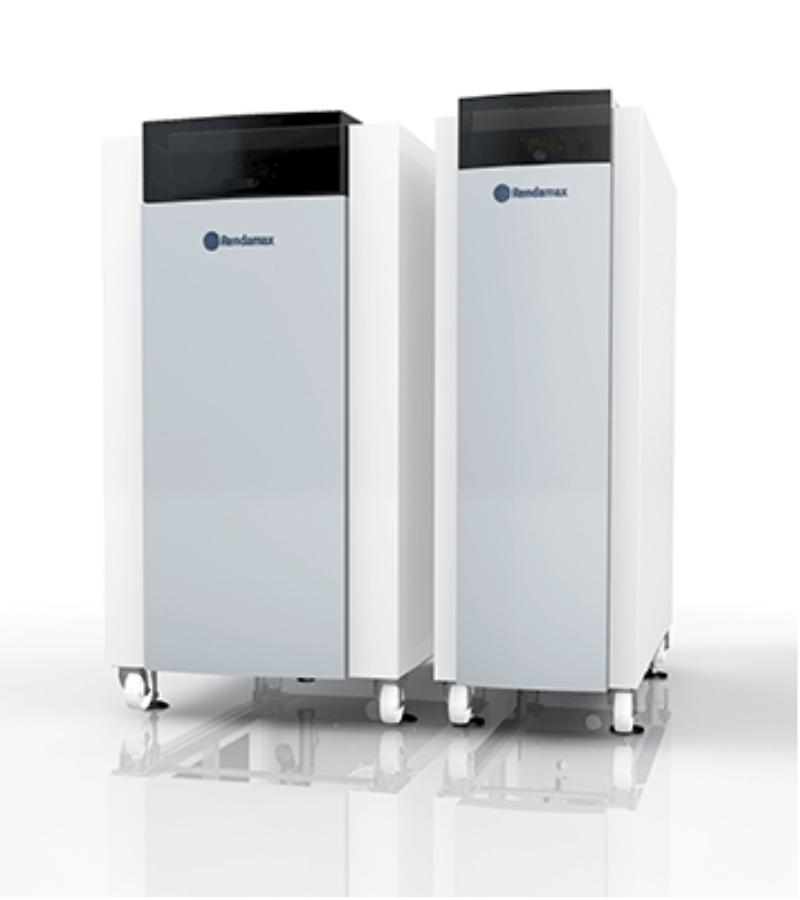

Rendamax R600 EVO Boiler
Commercial Floor-Standing Boiler
150 – 570kW
The R600 EVO is a powerful commercial floor-standing boiler featuring advanced pre-mix modulating technology. Trusted by contractors, it combines an installer-friendly design with exceptional performance.
- Compact, mobile & quick to dismantle
- Highly efficient up to 109,7%
- Engineered for mid size commercial applications
Rendamax R600 EVO Boiler:
- Floor-standing boiler
- Commercial gas condensing boiler
- 7 models (150 – 570 kW)
- Pre-mix modulating
- Highly efficient (up to 109,7%)
- Extremely low NOx and CO emissions
- Water-cooled, cold flame burner
- Up to 8 bar maximum water pressure (suitable for higher buildings)
- 30 K flow/return temperature differential for easy integration into complex single or cascade applications
- Fits through standard 760 mm wide doors (468,5 mm / 748,5mm wide)
- Compact and highly mobile with adjustable cargo wheels
- Can be disassembled into smaller pieces for easy maneuvering
- Inspection glass and ignition electrodes accessible from either side
- Stainless steel heat exchangers for maximum durability
| R600 EVO Range | R601 EVO | R602 EVO | R603 EVO | R604 EVO | R605 EVO | R606 EVO | R607 EVO |
|---|---|---|---|---|---|---|---|
| Efficiency at full load (%) | 98,2 | 98,2 | 98,2 | 98,2 | 98,3 | 98,3 | 98,2 |
| Annual efficiency (%) | 110,4 | 110,4 | 110,4 | 110,4 | 110,4 | 110,4 | 110,3 |
| Nominal heat output at 80/60°C (kW) | 142,3 | 190,4 | 237,6 | 285,7 | 381,3 | 476,7 | 540,2 |
| Nominal heat output at 50/30°C (kW) | 149,4 | 199,9 | 249,7 | 300,3 | 401,1 | 503,2 | 572,8 |
| Water content (L) | 27,0 | 31,0 | 35,0 | 61,0 | 68,0 | 75,0 | 82,0 |
| NOx level (mg/kWh) | 28 | 28 | 27 | 27 | 26 | 29 | 31 |
| Height (mm) | 1466 | 1466 | 1466 | 1470 | 1470 | 1470 | 1470 |
| Width (mm) | 468.5 | 468.5 | 468.5 | 748.5 | 748.5 | 748.5 | 748.5 |
| Depth (mm) | 1349 | 1499 | 1649 | 1348 | 1496 | 1646 | 1769 |
| Weight when empty (kg) | 290 | 332 | 336 | 434 | 496 | 540 | 595 |
Downloadable Literature:

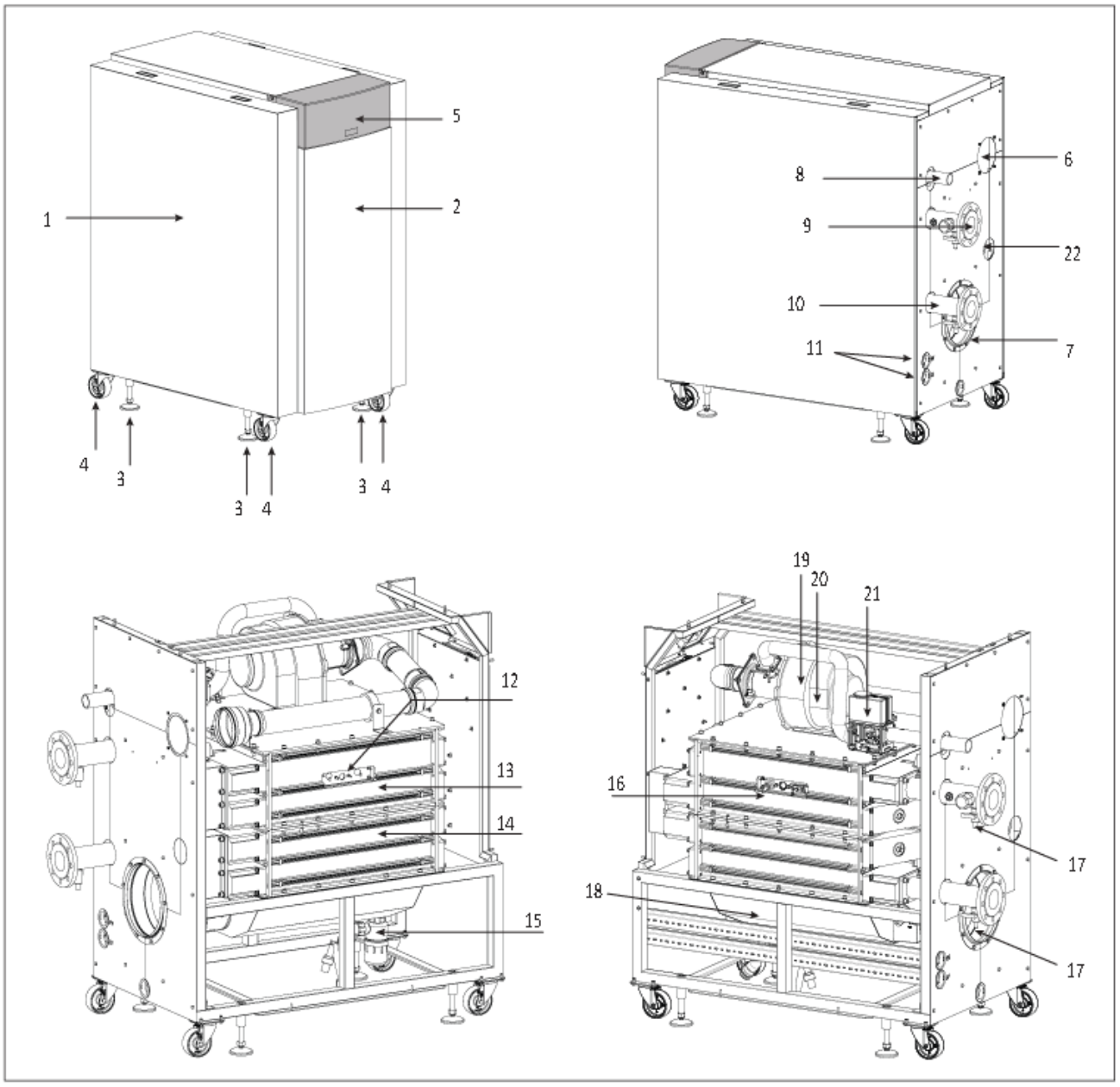

- Side panel
- Front panel
- Adjustable feet
- Wheel
- Control panel (below cover)
- Air intake connection (under casing)
- Flue gas connection
- Gas connection
- Flow water connection
- Return water connection
- Electrical input entries (HV/LV)
- Viewing glass
- Burner/1st heat exchanger assembly
- 2nd/3rd heat exchanger assembly
- Syphon
- Ignition and ionisation electrodes
- Filling/draining valve
- Condens tray
- Fan
- Gas/air mixing system
- Gas valve / Gas pressure switch
- 2nd (hot) return water connection
The R600 EVO is a Powerful Commercial Floor-Standing Boiler, designed for Mid Size Applications:
- Hospitality
- Healthcare
- Medical Facilities
- Education
- Manufacturing
- Food Processing
- Commercial Buildings
- Leisure Facilities
- Laundry Services
We Supply a Full Range of Rendamax Components for All Rendamax Equipment Models
Our most popular components:
- Electrode (Ignition Kanthal APM 93.2)
- Electrode (Ionisation)
- Pressure Sensor
- O-Ring 110.72 × 3.53
- Sensor (Flow-Return)
Purchase parts directly online by clicking here, or contact our spares department at [email protected].
Ultra Low Emissions
Through its advanced water-cooled flame burner and optimised combustion zone, the R600 EVO achieves ultra-low NOx and CO emissions. Combined with a stainless-steel heat exchanger, the system delivers lifetime efficiencies of up to 109.7%.
Installer-Friendly

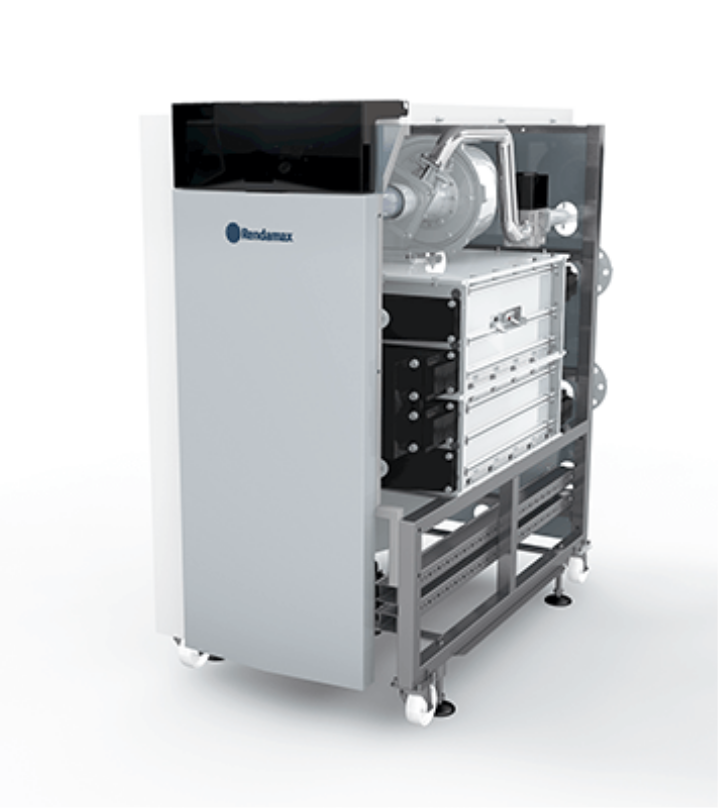

The smart modular concept, compact dimensions and integrated cargo wheels allow the R600 EVO to be easily maneuvered and installed. It’s sectional heat exchanger design enables the unit to be disassembled for installation into extremely restricted access plant rooms.
Demanding Setups

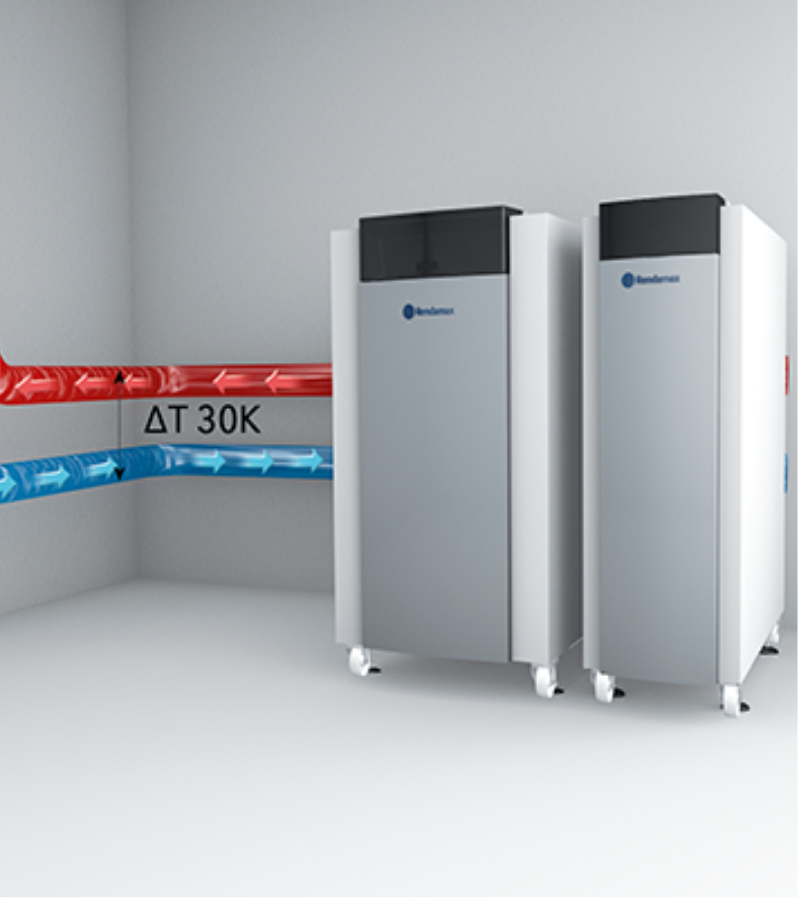

Built for demanding applications, the R600 EVO operates at pressures up to 8 bar, making it suitable for higher-rise buildings without hydraulic separation. A 30 K flow/return differential supports integration into complex systems, while its low water content design enables rooftop installation.
Cascade Control
The R600 EVO includes intuitive integrated controls with master/slave cascade capability for up to 8 boilers. Expandable modules allow easy integration with additional heating zones, solar thermal systems and external heat sources.
Replace Your Boiler in 4 Simple Steps
Request a Quote | Receive Tailored Quotation | Access to Free Technical Support | Quick Delivery & Installation
Request a Quote
With 7 models available, the Rendamax R600 EVO range of commercial boilers are engineered for demanding commercial applications. Contact our team today for a tailored quotation.
