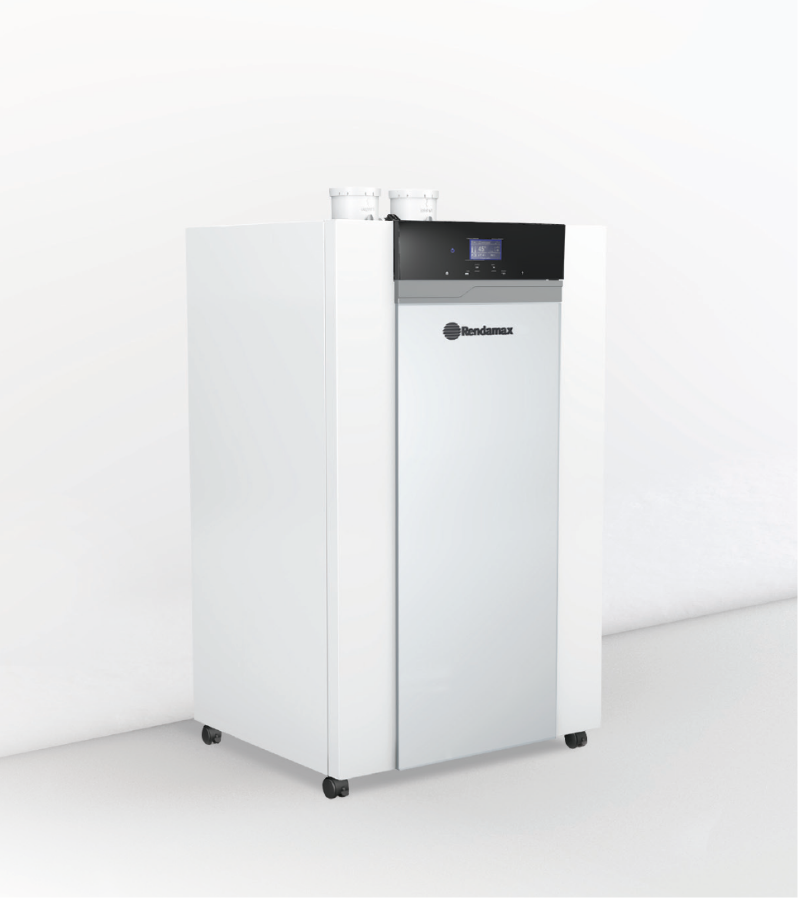

Rendamax R1000 Boiler
Commercial Floor-Standing Boiler
60 – 200kW
The R1000 is a powerful, floor standing condensing boiler. It’s suitable for an extensive range of commercial heating systems and delivers high power in a compact size.
- Installed across 300+ sites UK wide
- High efficiencies of up to 108,7%
- Quick plug & play installation
Rendamax R1000 Boiler:
- Floor Standing
- 7 models (60-200kW)
- Highly efficient (up to 108,7%)
- Pre-mix modulating
- Unique ‘dual engine’ design creating built-in redundancy
- Wide modulation range (1:10)
- Stainless steel heat exchangers
- Front-facing components for easy servicing
- Smart interface with integrated cascade manager
- Unique three zone heat exchanger technology (Nox Zone, CO Zone, H20 Zone)
- Hydraulic chambers maximise the water turbulence for maximum heat transfer
- Plug & play: Integrated pumps and non-return valves
- Cascade options: Inline (6 units = 1 MW; 8 Duo = 1.6 MW) or Back-to-Back (4+4 = 1 MW; 4+4 Duo = 1.6 MW)
| R1000 Range | R1060 | R1070 | R1100 | R1120 | R1140 | R1170 | R1200 |
|---|---|---|---|---|---|---|---|
| Efficiency at full load (%) | 98,2 | 98 | 97,7 | 98,2 | 98 | 97,9 | 97,7 |
| Annual efficiency (%) | 110,8 | 110,6 | 111,4 | 111 | 110,7 | 111,5 | 111,7 |
| Nominal heat output at 80/60°C (kW) | 56,9 | 65,4 | 90,2 | 110,8 | 130,5 | 155,5 | 180,3 |
| Nominal heat output at 50/30°C (kW) | 62,5 | 71,9 | 98,8 | 121,9 | 142,1 | 170,4 | 196,9 |
| Water content (L) | 9,3 | 9,3 | 13,9 | 16,8 | 16,8 | 21,3 | 25,8 |
| NOx level (mg/kWh) | 21,7 | 22,4 | 22,7 | 22,7 | 23,7 | 22,6 | 23,6 |
| Height (mm) | 1050 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 |
| Width (mm) | 530 | 530 | 530 | 690 | 690 | 690 | 690 |
| Depth (mm) | 595 | 595 | 675 | 595 | 595 | 675 | 675 |
| Weight when empty (kg) | 73 | 73 | 80 | 127 | 127 | 132 | 140 |
Downloadable Literature:

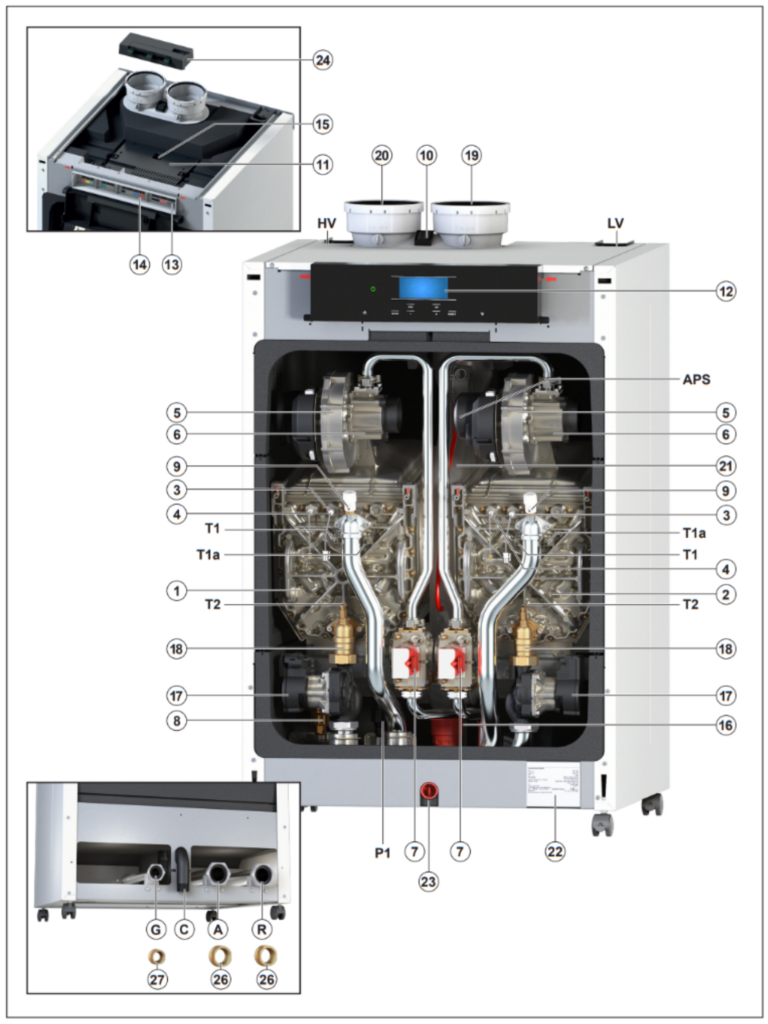

T1. flow sensor
T1a. secondary flow sensor
T2. return sensor
P1. water pressure sensor
APS. Air Pressure Switch
HV. high voltage electrical supply
LV. low voltage electrical supply
- heat exchanger 1
- heat exchanger 2
- ignition electrode
- detection electrode
- fan unit
- venturi
- gas valve
- automatic air vent
- manual air vent
- main switch 230V
- boiler control unit
- control unit HMI
- connection terminal
- connection terminal cascade bus communication
- connection terminal pc
- dirt collector
- circulation pump
- water no return valve
- flue connection
- air supply
- collective flue pipe
- information plate
- drainage cap
- clip 3 zone (accessory)
- air/flue connection concentric (optional for certain models)
- water pipe adapter 1 1/2″ (accessory)
- gas pipe adapter 1″ (accessory)
G. gas pipe
A. flow pipe CH
R. return pipe CH
C. condensate drain pipe
- Hospitality
- Healthcare
- Medical Facilities
- Education
- Manufacturing
- Food Processing
- Commercial Buildings
- Leisure Facilities
- Laundry Services
We Supply a Full Range of Rendamax Components for All Rendamax Equipment Models
Our most popular components:
- Ignition Electrode + Gasket iCON XL
- Ionisation Electrode + Gasket iCON XL
- Gas Valve iCON XL Version 3
- Water Pressure Sensor 5V Ratio
- NTC Flow 10K Temperature Sensor
- Fan iCON XL
Purchase parts directly online by clicking here, or contact our spares department at [email protected].
Built-in Back-up

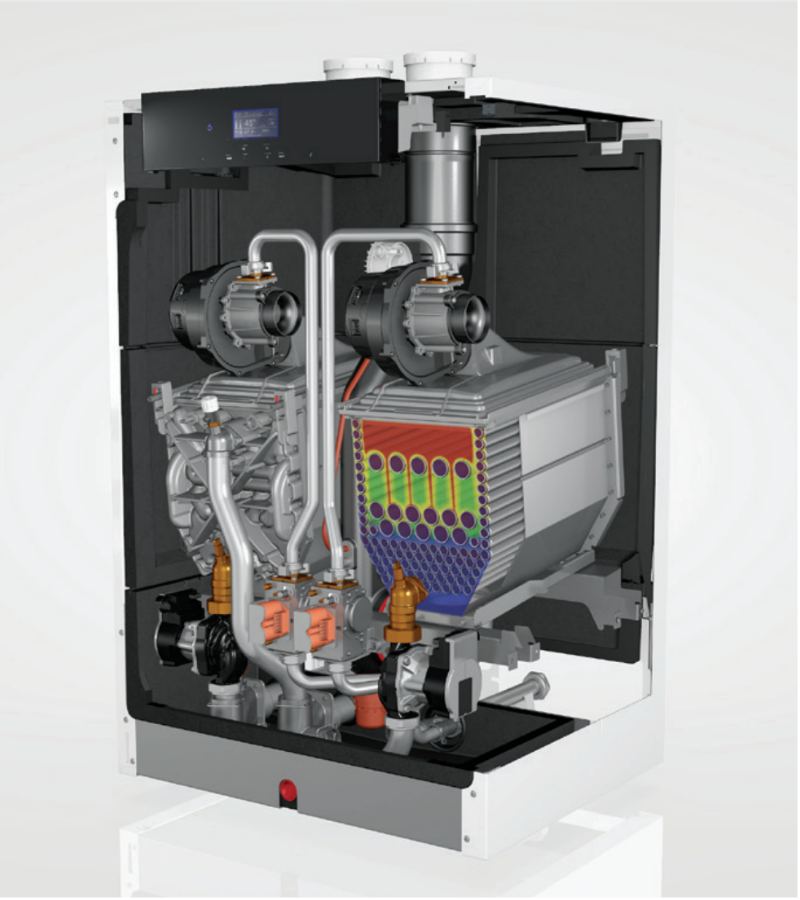

Thanks to its unique dual-engine design, the R1000 features built-in redundancy, creating a cascade system within a single boiler. It’s two heat exchangers can operate independently, ensuring continuous, reliable heating even if one side requires maintenance.
Plug & Play
Integrated components, including the pump and non-return valves, reduce installation time, costs and plant room space requirements, enabling a true plug and play installation. The intuitive HMI (Human Machine Interface) also simplifies setup and commissioning.

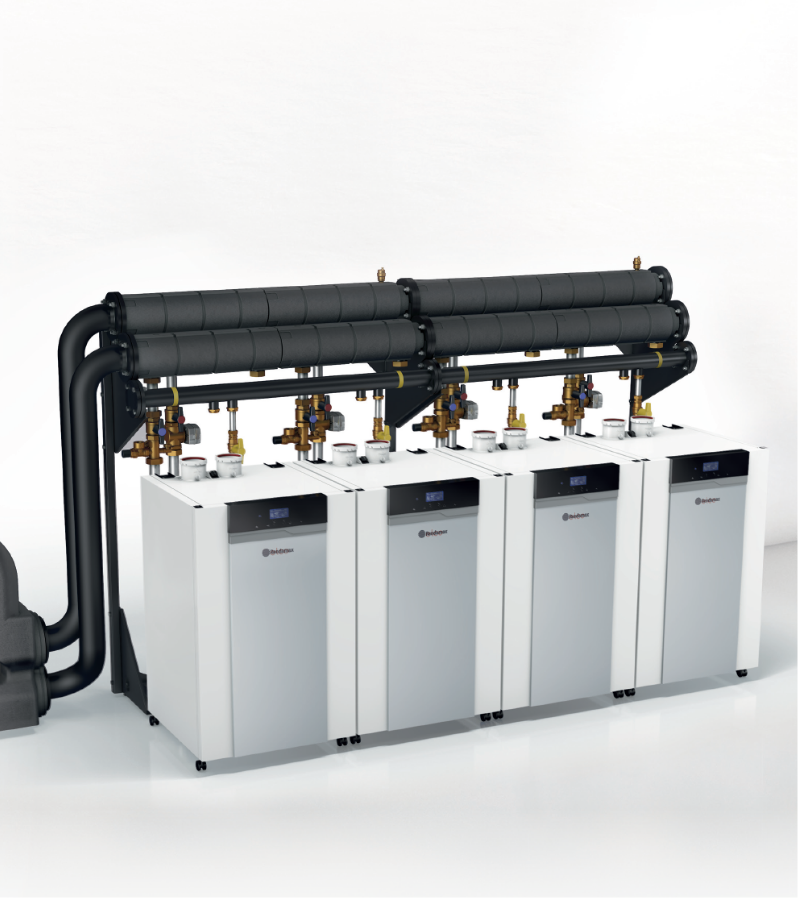

Cascade Portfolio
Available in both in-line and back-to-back cascade arrangements for up to eight boilers, the R1000 delivers outputs up to 1.6 MW. Each system includes all the components necessary to complete the primary heating circuit, allowing for a fast, streamlined installation.
Simple to Service
All key components are accessible from the front of the boiler, making servicing and maintenance faster, simpler and more efficient. The smart control interface also provides full diagnostic capabilities for simplified fault finding.
Replace Your Boiler in 4 Simple Steps
Request a Quote | Receive Tailored Quotation | Access to Free Technical Support | Quick Delivery & Installation
Request a Quote
The Rendamax R1000 boiler range includes 7 models designed to suit a wide range of demanding commercial applications. Contact our team today for a tailored quotation.
