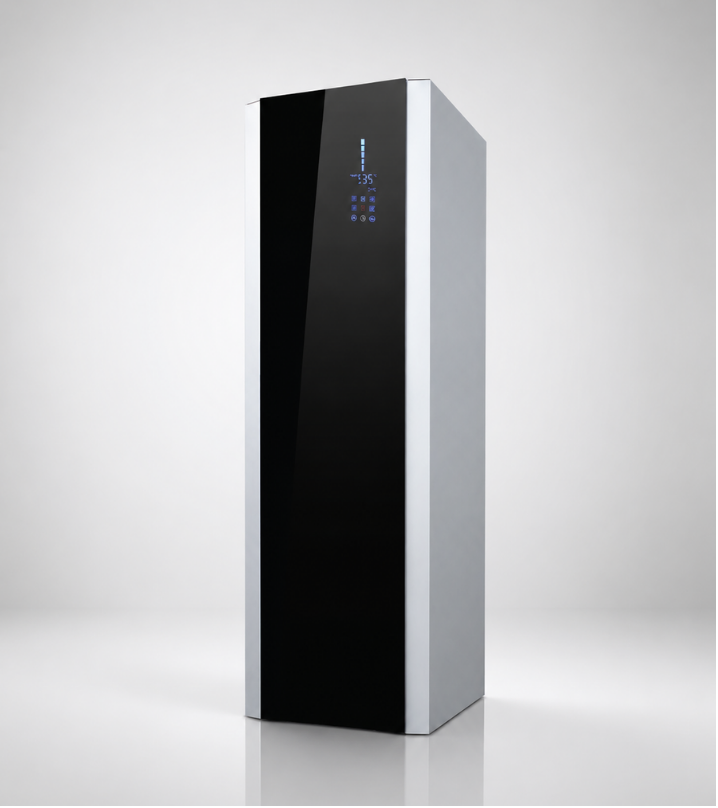

AW Series
Commercial Air Source Heat Pump
UK's Most Space-Efficient Commercial Hot Water Heat Pump
The AW Series delivers instant hot water up to 75°C without requiring an outdoor unit. Engineered for retrofit projects and space-constrained applications where traditional heat pumps won’t fit.
- Fits where traditional ASHPs cannot
- Rapid plug & play installation
- British designed & manufactured
The AW Series:
- Fits where traditional ASHPs cannot
- Compact indoor design with integrated heat pump and stainless steel cylinder
- Rapid plug & play installation
- Inverter-driven compressor technology
- Variable-speed fan control
- A++ energy efficiency rating
- Produces up to 60°C hot water using the heat pump alone, or 75°C with an immersion heater
- Available in 200L and 300L storage capacities
- British designed and manufactured for UK climates, operating from -5°C to +43°C
- Low standing heat loss due to 50mm PU foam insulation
- Quiet operation with sound pressure as low as 32.5 dB(A)
- Designed for ducted fresh air inlet and outlet installation
- Integrated factory-fitted Temperature & Pressure (T&P) valve
| Model Code | AW 08-200-T | AW 08-300-T |
|---|---|---|
| Nominal Volume (Litres) | 200 | 300 |
| Air Operating Range (°C) | -5 to +43 | -5 to +43 |
| Achievable Hot Water Temperature Via Heat Pump (°C) | 60 | 60 |
| Max Electrical Power Input Heat Pump and Immersion (kW) | 2.05 | 2.05 |
| Max Thermal Power Output from Heat Pump only at 45°C (kW) | 2.173 | 2.173 |
| Max Power Output from Heat Pump and Immersion at 45°C (kW) | 3.673 | 3.673 |
| Air Flow (m3/hr) | 300 to 450 | 300 to 450 |
| Sound Pressure Level - dB(A) | 33.6 | 32.5 |
| Sound Power Level - dB(A) | 51.6 | 51.0 |
| Refrigerant Type | R134A | R134A |
| Refrigerant Weight (kg) | 1.25 | 1.25 |
| Standing Heat Loss (kWh/24hr) | 0.38 | 0.50 |
| Water Heating Time from 10°C to 55°C (hours) | 5.8 | 8.7 |
| Coefficient of Performance | 3.2 | 3.4 |
| Energy Efficiency Class | A++ | A++ |
| Dimensions (mm) | 566 x 570 x 1731 | 640x655x1804 |
| Weight without Packaging (kg) | 104 | 129 |
| Air Duct Diameter (mm) | 150 | 150 |
| Minimum Air Flow (m /hr) | 300 | 300 |
| Water Connection (inch) | Male 3/4 | Male 3/4 |
| Condensate Tube ID (mm | 20 | 20 |
| Electrical Supply | 230VAC/50Hz 8.9A | 230VAC/50Hz 8.9A |
| MCB Type | Type B 16A | Type B 16A |
| Material | Stainless Steel | Stainless Steel |
| Insulation | 50mm PU Foam | 50mm PU Foam |
| Maximum Water Inlet Supply Pressure (bar) | 7 | 7 |
| Integrated Electric Immersion (kW) | 1.5 | 1.5 |
| Max Temperature with Immersion (°C) | 75 | 75 |
Downloadable Literature:
The AW Series integrates the heat pump and hot water storage into one compact indoor unit, making it ideal for commercial spaces where space is limited, including:
- Building extensions
- Retrofit projects
- Heritage buildings
- City-centre developments
- Space-constrained installations
- Plant room upgrades
- Schools and universities
- Hotels and hospitality
- Care homes
- Offices
- Retail premises
Why Engineers Specify the AW Series
Rapid plug & play installation
Ultra-compact indoor design for tight spaces
Whisper-quiet operation from 32.5 dB(A)
Hot Water Temperature up to 75°C
Compact Footprint
The AW Series commercial ASHP integrates full heat pump functionality into a compact, indoor unit, solving installation challenges in commercial buildings with limited outdoor space.
Rapid Installation
Engineered with installers in mind, the AW Series features a plug-and-play, all-in-one design that simplifies installation, speeds up commissioning and reduces labour costs.
Whisper-Quiet
Operating with ultra-low noise levels from just 32.5 dB(A), the AW Series can be installed in occupied buildings without the noise concerns associated with many traditional heat pumps.
British Manufactured
Designed and manufactured in Britain, the AW Series commercial air source heat pump is engineered for the UK climate, delivering reliable performance in temperatures from -5°C to +43°C.
Discuss Your Project with a Heat Pump Specialist
Think a traditional heat pump won’t fit? Our engineers can assess your building and demonstrate how the AW Series delivers high-temperature hot water where space is limited.
Air Source Heat Pump FAQ's
Will the AW Series work during the winter months?
Yes. Built in the UK for British weather, the AW Series heat pump extracts heat in temperatures down to -5°C. If it drops lower, the built-in 1.5 kW electric immersion automatically steps in so your hot water supply remains completely uninterrupted.
Is the AW Series installer friendly?
Yes. The AW Series is an installer-friendly commercial air source heat pump, featuring a simple plug-and-play design and an all-in-one integrated heat pump with a stainless-steel cylinder, enabling rapid installation.
What is an Air Source Heat Pump?
An air source heat pump (ASHP) is a low-carbon heating system that extracts heat from the outside air to provide heating and domestic hot water. It uses electricity to transfer heat rather than generate it, making it an energy-efficient alternative to traditional boilers.
What is an AW Series indoor heat pump and how does it work?
The AW Series is a commercial air source heat pump, it combines an all-in-one heat pump with integrated domestic hot water storage. It draws outside air through discreet wall ducting, extracts the thermal energy to heat your domestic hot water and vents the cool air back outside.
Does the AW Series heat my radiators or underfloor heating?
No. The AW Series is designed exclusively for domestic hot water (DHW) supply. It replaces or upgrades your hot water cylinder to provide efficient hot water for taps, showers and baths, operating independently of your central heating system.
Does the AW Series need to be installed outside?
No. Unlike traditional air source heat pumps, the AW Series requires no external fan unit or ground footprint. It uses 150mm air ducting directly to an exterior wall, making it ideal for properties or extensions with space or planning restrictions.
How energy efficient is the AW Series?
The AW Series carries an A++ Energy Efficiency Class.
What temperature can the hot water reach?
The heat pump efficiently heats stored water up to 60°C on its own. For legionella protection cycles or extra demand, the integrated 1.5 kW immersion heater can boost temperatures up to 75°C.
How noisy is the indoor unit during operation?
The AW Series is engineered for ultra-quiet indoor operation, operating as low as 32.5 dB(A) (similar to a soft whisper). It also features a variable speed fan mode to optimize performance and sound levels.
What comes included with the AW Series unit?
Each unit includes a factory-fitted Temperature & Pressure (T&P) relief valve, an unvented inlet control group, a tundish and an expansion vessel. External air ducting is specified separately to fit your property’s precise layout.
